FT INPUT EXPANDER

$499.00

  • Brand: Fueltech
  • Availability: 1 In Stock
  • SKU: 1

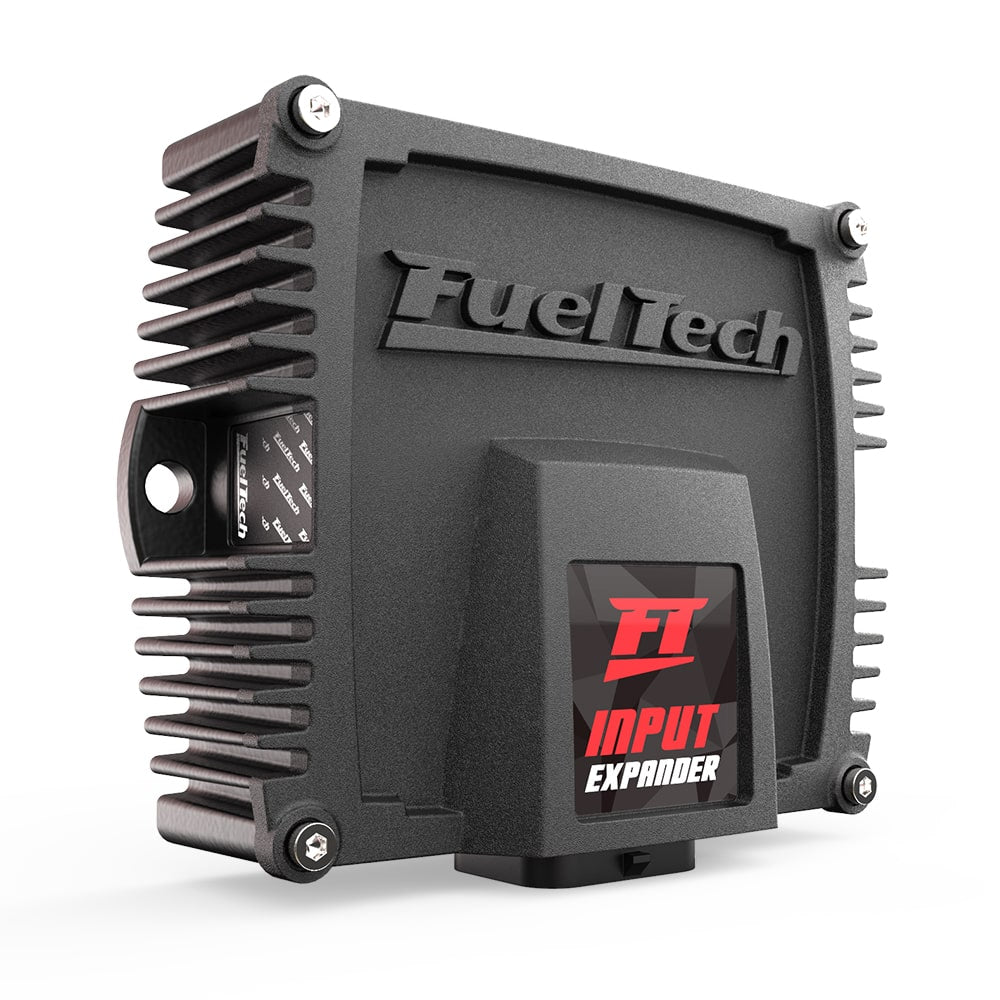

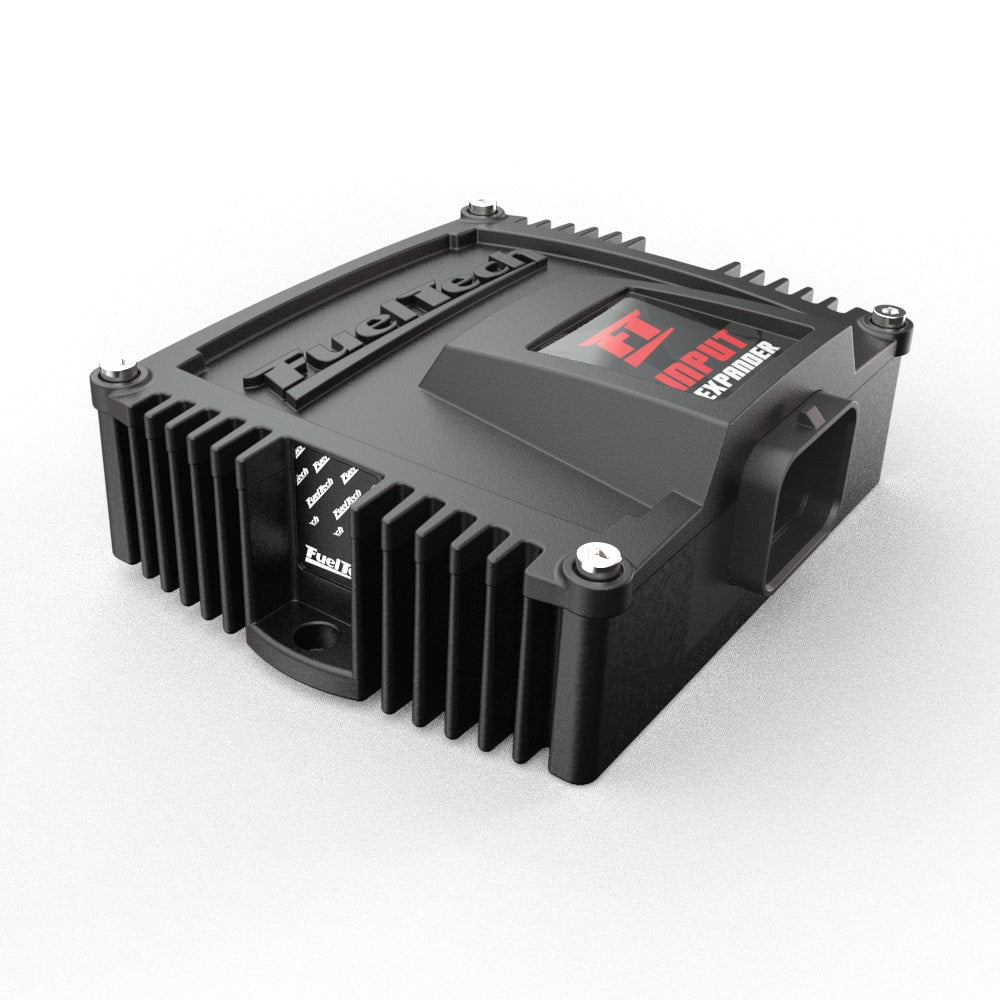

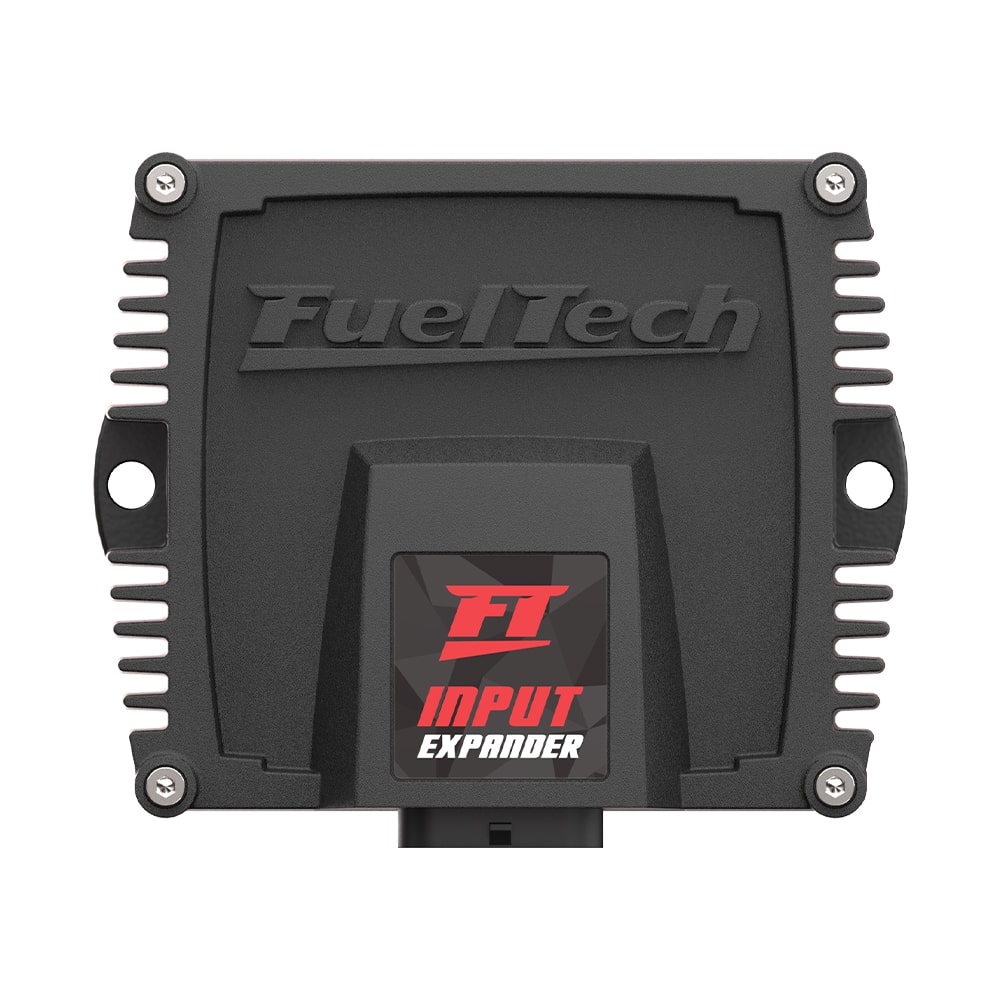

Input Expander Module for PowerFT line (FT500 / FT500LITE / FT450 / FT550 / FT550LITE / FT600), with 20 inputs for sensor readings such as (pressure, flow, temperatures, position and activation of functions using keys or buttons), and 4 inputs RPM reading and speed. Full integration with FTManager software and communication via the CAN network. With a simple and fast configuration through an interface already known to all users...

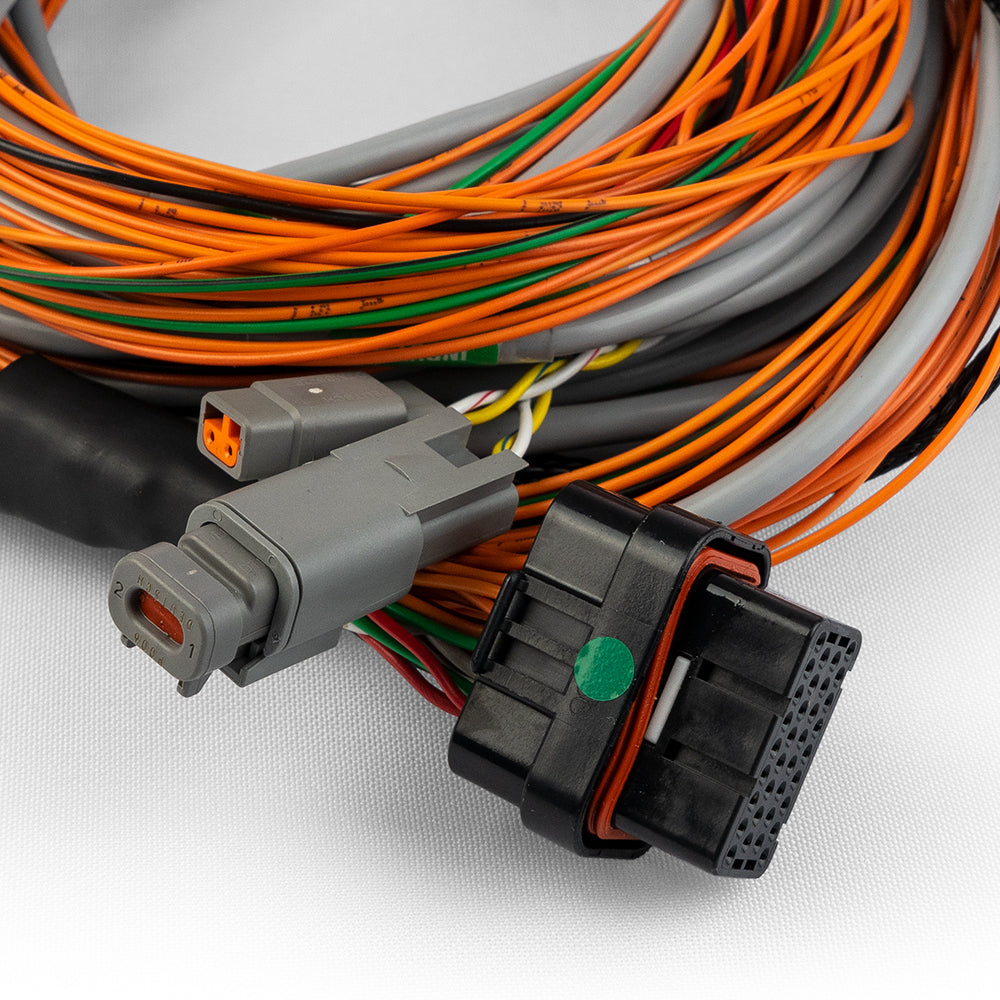

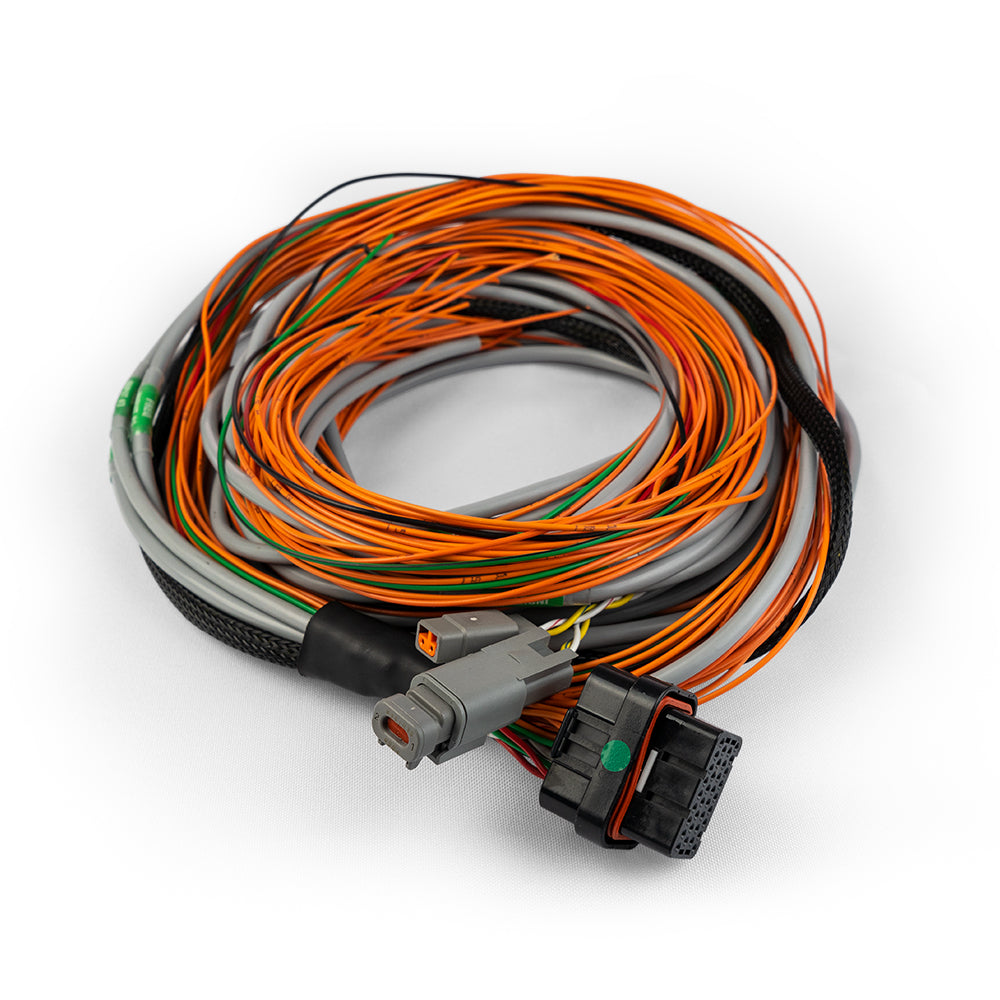

Harness

Input Expander Module for PowerFT line (FT500 / FT500LITE / FT450 / FT550 / FT550LITE / FT600), with 20 inputs for sensor readings such as (pressure, flow, temperatures, position and activation of functions using keys or buttons), and 4 inputs RPM reading and speed. Full integration with FTManager software and communication via the CAN network. With a simple and fast configuration through an interface already known to all users of FuelTech products.

Specifications:

  • 20 analog inputs
  • 4 differential inputs
  • Communication via CAN Network
  • 34-Way automotive connector

Dimensions:

  • Module: 4.53 x 3.54 x 1.77 in
  • Packaging: 8.78 x 6.38 x 2.36 in

Contents of packaging:

  • 1 Input Expander Module
  • 1 installation and operation manual
  • 1 sticker
  • 1 cushion kit

Warranty:

  • Worldwide: 1 year
